軟管卷筒您當前的位置：首頁 》 產品中心 》 軟管卷筒與電纜卷筒 》 軟管卷筒
點擊數：2218HR2緊湊型雙管軟管卷筒

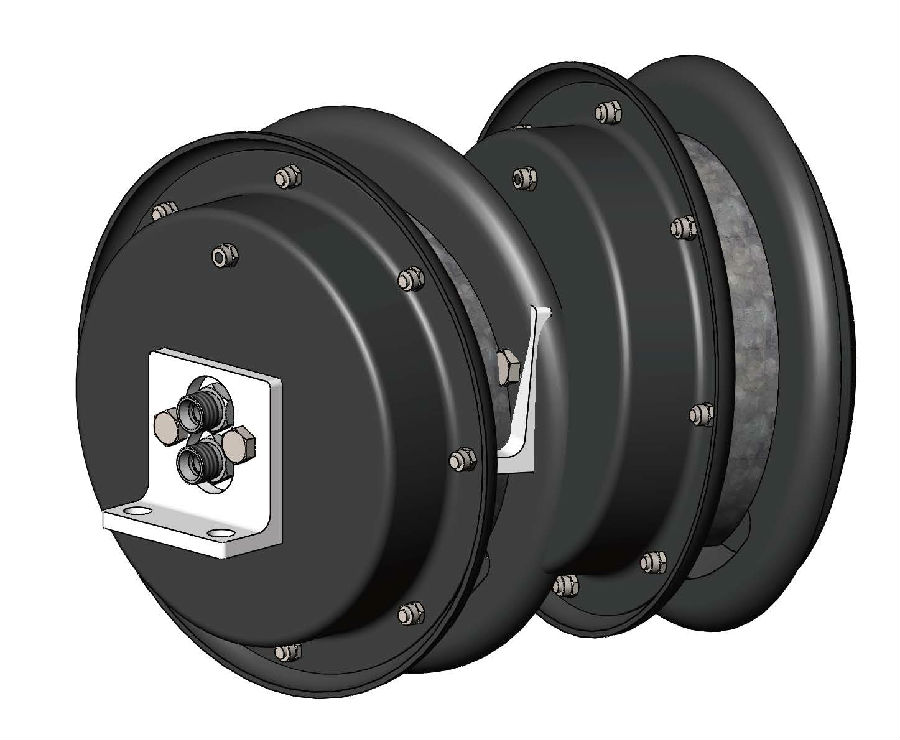

HR2C緊湊型雙管軟管卷筒
單管型｜Single hose reels 最大壓力 | Max. work pressure ：350bar |  |
訂貨實例 | Or der Example
| HR2C | R | 270 | 06 | R7 |
| 雙管緊湊型卷筒 | R：右旋 L：左旋 | 盤子直徑 | 軟管內徑 | 軟管類型 |
安裝方式 | Mounting
 |  |  |
橫向安裝 Horizontal | 垂直向上 Vertical up | 垂直向下 Vertical down （可要求|On request） |
可選軟管 | Available hose
R7、R8 ：熱塑性纖維編織加強層軟管 | Thermoplastic with textile braid reinforcement
B1：熱塑性鋼絲編織加強層軟管 | Thermoplastic with 1 steel braid reinforcement
B2：合成橡膠2層鋼絲編織加強層軟管 | Rubber with 2 steel braid reinforcement
| 軟管內徑 inside hose | 型號 Type | 最大壓力 Max.pressure | 軟管外徑 Outside hose | 最小彎曲半徑 Min.bending radius | 重量 weight | |
| Inch | mm | bar | mm | mm | Kg/m | |
| 3/16" | 5 | R7 | 206 | 9.6 | 25 | 0.12 |
| B2 | 340 | 9.8 | 40 | 0.14 | ||
| 1/4" | 6.3 | R7 | 200 | 12.2 | 30 | 0.19 |
| R8 | 345 | 12.2 | 30 | 0.2 | ||
| B1 | 275 | 11.7 | 40 | 0.33 | ||
| B2 | 375 | 13.5 | 40 | 0.53 | ||
| 5/16" | 8 | R7 | 172 | 14.4 | 45 | 0.25 |
| R8 | 300 | 14.4 | 45 | 0.25 | ||
| B1 | 212 | 13.4 | 55 | 0.37 | ||
| B2 | 310 | 15.1 | 55 | 0.64 | ||
| 3/8" | 10 | R7 | 160 | 16 | 55 | 0.29 |
| R8 | 275 | 16 | 55 | 0.29 | ||
| B1 | 212 | 16 | 65 | 0.53 | ||
| B2 | 350 | 17 | 90 | 0.8 | ||

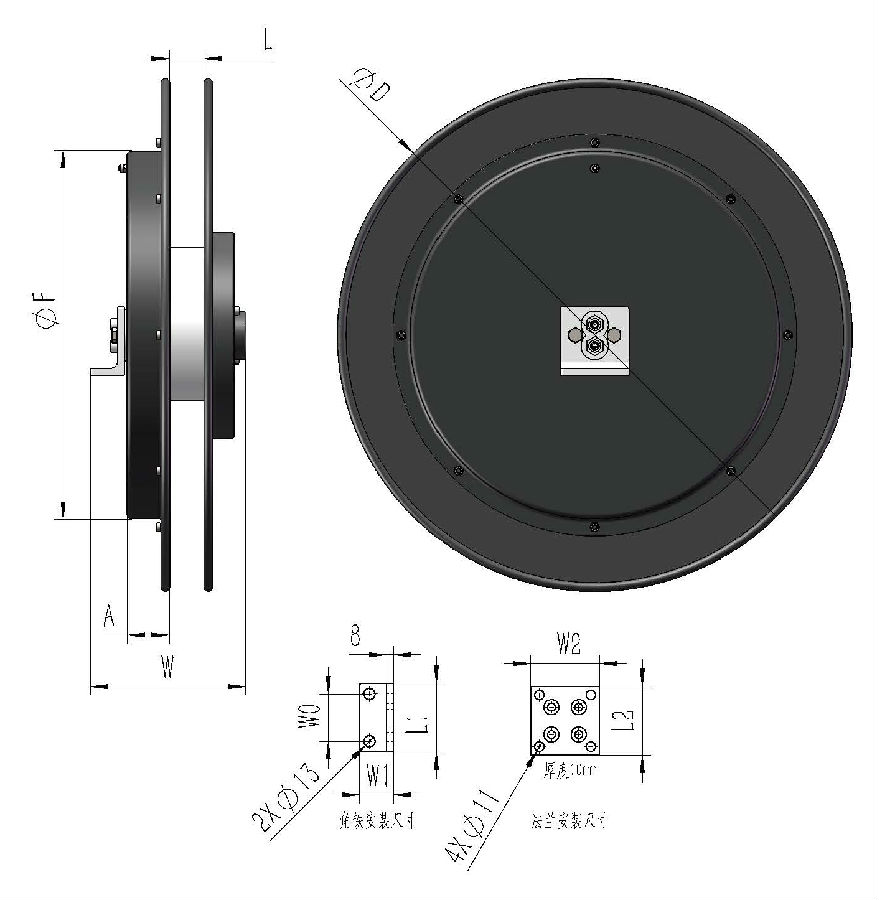

尺寸圖
| 型號 Type | A | B | D | E | F | 軟管內徑 Inside Hose | 管型|Hose type-R7-R8-B1 | 管型|Hose type-B2 | ||
| mm | 總長(m) total length | 工作行程(m) Usable Length | 總長(m) total length | 工作行程(m) Usable Length | ||||||
| HR2CR(L).200.05.XX | 133 | 65 | 200 | 30 | 195 | 3/16" | 2.5 | 2.3 | ||
| HR2CR(L).200.06.XX | 1/4" | 1.5 | 1.3 | |||||||
| HR2CR(L).230.05.XX | 141 | 75 | 235 | 30 | 228 | 3/16" | 3 | 2.7 | ||
| HR2CR(L).230.06.XX | 1/4" | 2.2 | 1.9 | |||||||
| HR2CR(L).230.08.XX | 5/16" | 2 | 1.7 | |||||||
| HR2CRC(L).230.10.XX | 3/8" | 2 | 1.7 | |||||||
| HR2CR(L).270.05.XX | 150 | 75 | 275 | 30 | 272 | 3/16" | 4.5 | 4.2 | ||
| HR2CR(L).270.06.XX | 1/4" | 4 | 3.7 | |||||||
| HR2CR(L).270.08.XX | 5/16" | 3.2 | 2.9 | 2.6 | 2.3 | |||||
| HR2CR(L).270.10.XX | 3/8" | 2.8 | 2.5 | 2.5 | 2.2 | |||||
| HR2CR(L).295.06.XX | 150 | 75 | 295 | 35 | 272 | 1/4" | 4.7 | 4.4 | ||
| HR2CR(L).295.08.XX | 5/16" | 2.2 | 3.9 | 3.5 | 3.2 | |||||
| HR2CR(L).295.10.XX | 3/8" | 3.6 | 3.3 | 3 | 2.7 | |||||
| HR2CR(L).320.06.XX | 150 | 82 | 325 | 37 | 272 | 1/4" | 5.5 | 5.2 | ||
| HR2CR(L).320.08.XX | 5/16" | 5 | 4.7 | 4 | 3.7 | |||||
| HR2CR(L).320.10.XX | 3/8" | 4.5 | 4.2 | 4 | 3.7 | |||||
| HR2CR(L).340.06.XX | 150 | 82 | 340 | 37 | 272 | 1/4" | 6 | 5.7 | ||
| HR2CR(L).340.08.XX | 5/16" | 5.3 | 5 | 4.5 | 4.2 | |||||
| HR2CR(L).340.10.XX | 3/8" | 4.6 | 4.3 | 4.3 | 4 | |||||
